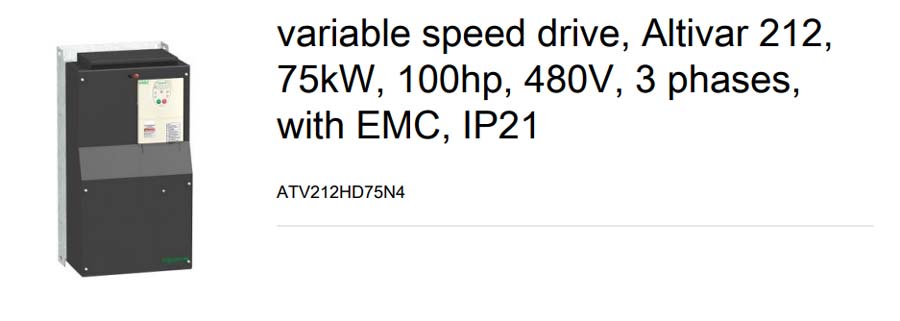

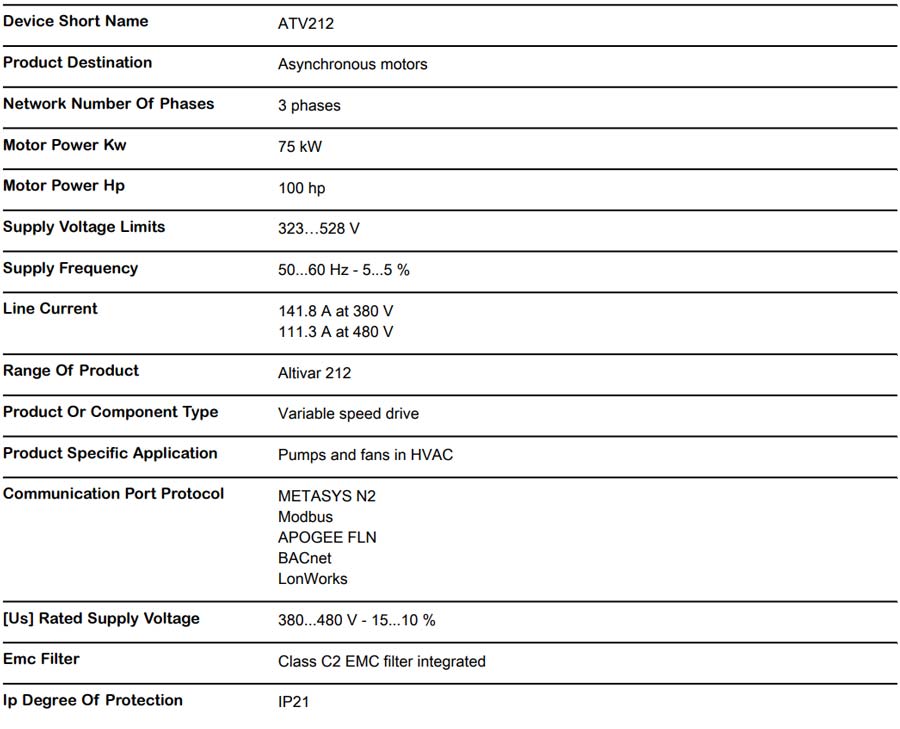

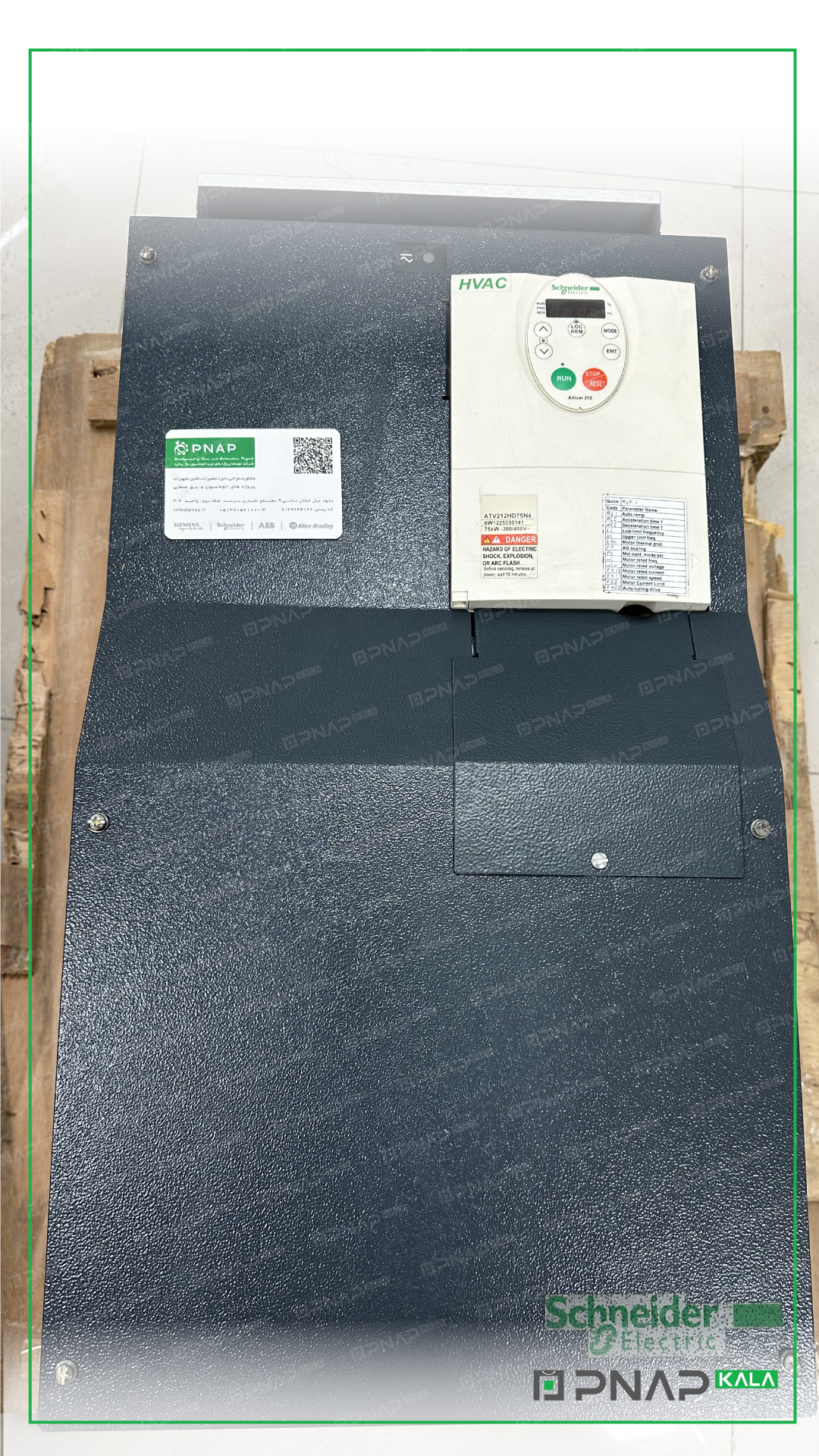

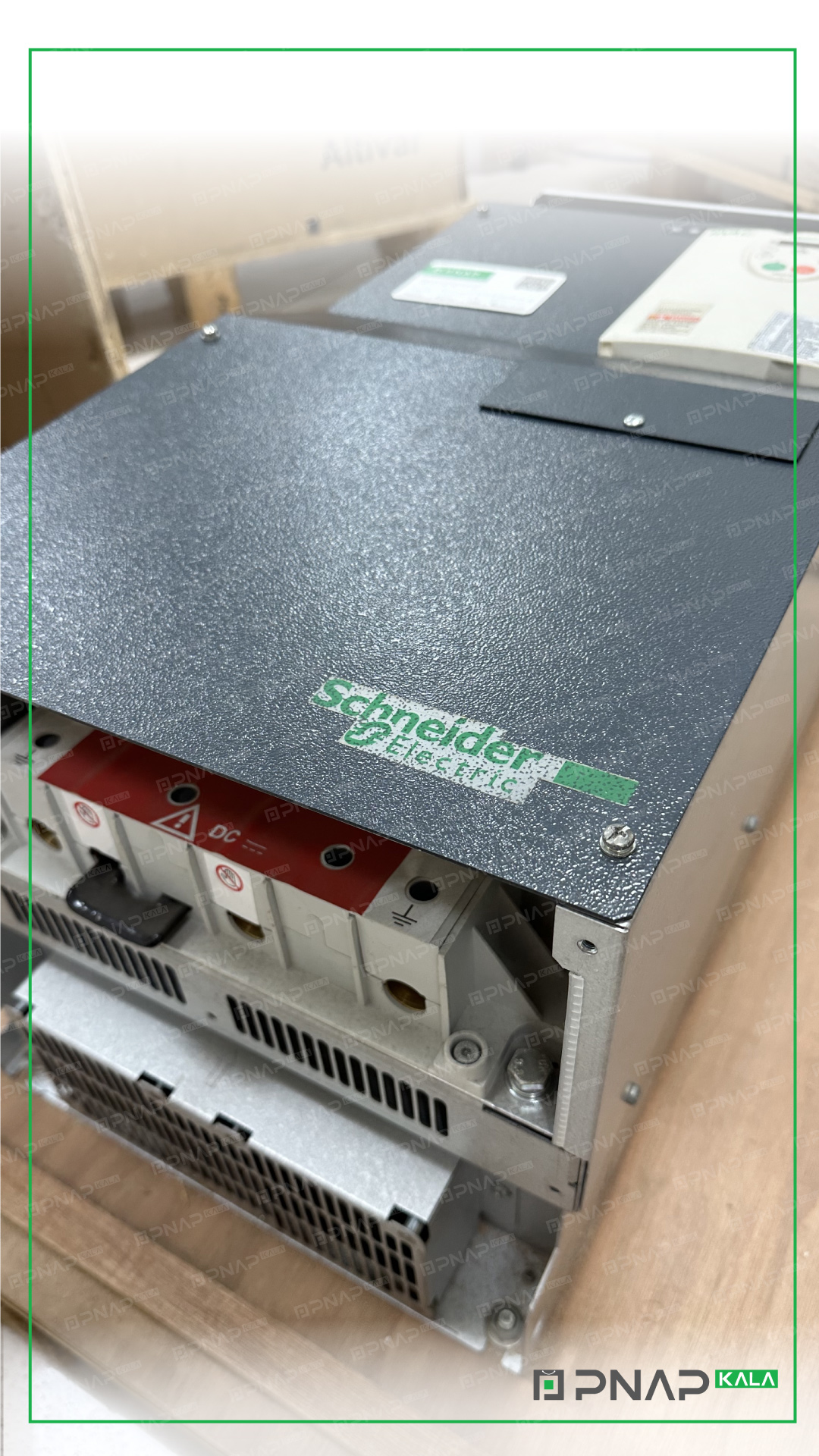

مشخصات اصلی درایو 75 کیلووات آلتیوار 212 اشنایدر |
| نام کوتاه محصول (Device short name) | ATV212 |
| موارد استفاده (Product destination) | Asynchronous motors |
| تعداد فازهای شبکه (Network number of phases) | 3 phases |
| توان موتور (کیلووات) (Motor power kW) | 75 kW |
| توان موتور (اسب بخار) (Motor power hp) | 100 hp |
| محدودیت های ولتاژ تغذیه (Supply voltage limits) | 323…528 V |
| فرکانس تغذیه (Supply frequency) | 50-60 Hz - 5-5 % |
| جریان خط (Line current) | 141.8 A at 380 V
111.3 A at 480 V |
| خانواده محصول (Range of product) | Altivar 212 |
| نوع محصول یا جزء (Product or component type) | Variable speed drive |
| کاربرد خاص محصول (Product specific application) | Pumps and fans in HVAC |
| پروتکل پورت ارتباطی (Communication port protocol) | METASYS N2
Modbus
APOGEE FLN
BACnet
LonWorks |
| [ما] ولتاژ منبع تغذیه نامی (Rated supply voltage) | 380-480 V - 15-10 % |
| فیلتر EMC (EMC filter) | Class C2 EMC filter integrated |
| درجه حفاظت IP (IP degree of protection) | IP21 |
مشخصات تکمیلی درایو 75 کیلووات آلتیوار 212 اشنایدر |
| توان ظاهری (Apparent power) | 105.3 kVA at 380 V |
| جریان خروجی پیوسته (Continuous output current) | 160 A at 380 V
160 A at 460 V |
| حداکثر جریان گذرا (Maximum transient current) | 176 A for 60 s |
| فرکانس خروجی درایو سرعت (Speed drive output frequency) | 0.5…200 Hz |
| محدوده سرعت (Speed range) | 1…10 |
| دقت سرعت (Speed accuracy) | +/- 10 % of nominal slip 0.2 Tn to Tn |
| سیگنال دهی محلی (Local signalling) | 1 LED (red) for DC bus energized |
| ولتاژ خروجی (Output voltage) | <= power supply voltage |
| ایزولاسیون (Isolation) | Electrical between power and control |
| نوع کابل (Type of cable) | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC
With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC |
| اتصال برق (Electrical connection) | VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / AWG 14
L1/R, L2/S, L3/T: terminal 150 mm² (300 kcmil) |
| گشتاور سفت شدن (Tightening torque) | 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
41 N.m, 360 lb.in (L1/R, L2/S, L3/T) |
| تغذیه (Supply) | Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection
Internal supply: 24 V DC (21…27 V), <200 A, protection type: overload and short-circuit protection |
| مدت زمان نمونه برداری (Sampling duration) | 2 ms +/- 0.5 ms F discrete
2 ms +/- 0.5 ms R discrete
2 ms +/- 0.5 ms RES discrete
3.5 ms +/- 0.5 ms VIA analog
22 ms +/- 0.5 ms VIB analog |
| زمان پاسخ (Response time) | FM 2 ms, tolerance +/- 0.5 ms for analog output(s)
FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s)
FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s)
RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s) |
| دقت (Accuracy) | +/- 0.6 % (VIA) for a temperature variation 60 °C
+/- 0.6 % (VIB) for a temperature variation 60 °C
+/- 1 % (FM) for a temperature variation 60 °C |
| خطای خطی (Linearity error) | VIA: +/- 0.15 % of maximum value for input
VIB: +/- 0.15 % of maximum value for input
FM: +/- 0.2 % for output |
| نوع خروجی آنالوگ (Analogue output type) | FM switch-configurable voltage 0-10 V DC, impedance: 7620 Ohm, resolution 10 bits
FM switch-configurable current 0-20 mA, impedance: 970 Ohm, resolution 10 bits |
| نوع خروجی دیجیتال (Discrete output type) | Configurable relay logic: (FLA, FLC) NO - 100000 cycles
Configurable relay logic: (FLB, FLC) NC - 100000 cycles
Configurable relay logic: (RY, RC) NO - 100000 cycles |
| حداقل جریان سوئیچینگ (Minimum switching current) | 3 mA at 24 V DC for configurable relay logic |
| حداکثر جریان سوئیچینگ (Maximum switching current) | 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)
5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)
2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R)
2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) |
| نوع ورودی دیجیتال (Discrete input type) | F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm
R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm
RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm |
| منطق ورودی دیجیتال (Discrete input logic) | Positive logic (source) (F, R, RES), = 11 V (state 1)
Negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1) |
| قدرت دی الکتریک (Dielectric strength) | 3535 V DC between earth and power terminals
5092 V DC between control and power terminals |
| مقاومت عایق (Insulation resistance) | >= 1 mOhm 500 V DC for 1 minute |
| وضوح فرکانس (Frequency resolution) | Display unit: 0.1 Hz
Analog input: 0.024/50 Hz |
| خدمات ارتباطی (Communication service) | Read device identification (43)
Write single register (06)
Time out setting from 0.1 to 100 s
Monitoring inhibitable
Read holding registers (03) 2 words maximum
Write multiple registers (16) 2 words maximum |
| کارت توسعه (Option card) | Communication card for LonWorks |
| اتلاف برق در وات (Power dissipation in W) | 1945 W |
| جریان هوا (Air flow) | 666 m3/h |
| عملکرد (Functionality) | Mid |
| کاربرد خاص (Specific application) | HVAC |
| کاربرد درایو با سرعت متغیر (Variable speed drive application selection) | Building - HVAC compressor for scroll
Building - HVAC fan
Building - HVAC pump |
| محدوده توان موتور AC-3 (Motor power range AC-3) | 55…100 kW at 380…440 V 3 phases
55…100 kW at 480…500 V 3 phases |
| نوع استارت موتور (Motor starter type) | Variable speed drive |
| تعداد خروجی دیجیتال (Discrete output number) | 2 |
| تعداد ورودی آنالوگ (Analogue input number) | 2 |
| نوع ورودی آنالوگ (Analogue input type) | VIA switch-configurable voltage: 0-10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits
VIB configurable voltage: 0-10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits
VIB configurable PTC probe: 0-6 probes, impedance: 1500 Ohm
VIA switch-configurable current: 0-20 mA, impedance: 250 Ohm, resolution 10 bits |
| تعداد خروجی آنالوگ (Analogue output number) | 1 |
| رابط فیزیکی (Physical interface) | 2-wire RS 485 |
| نوع رابط (Connector type) | 1 open style
1 RJ45 |
| نرخ انتقال (Transmission rate) | 9600 bps or 19200 bps |
| قاب انتقال (Transmission frame) | RTU |
| تعداد آدرس ها (Number of addresses) | 1…247 |
| فرمت داده (Data format) | 8 bits, 1 stop, odd even or no configurable parity |
| نوع پلاریزاسیون (Type of polarization) | No impedance |

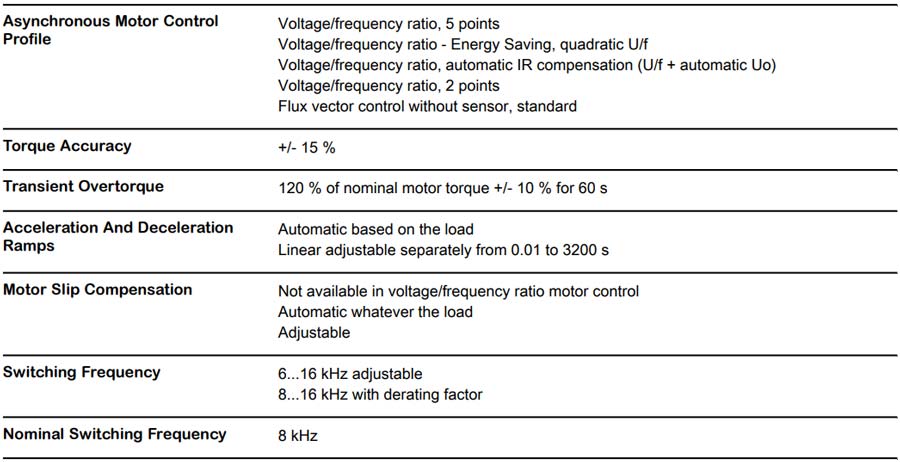

| مشخصات کنترل موتور ناهمزمان (Asynchronous motor control profile) | Voltage/frequency ratio, 5 points
Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)
Voltage/frequency ratio, 2 points
Flux vector control without sensor, standard |
| دقت گشتاور (Torque accuracy) | +/- 15 % |
| گشتاور گذرا (Transient overtorque) | 120 % of nominal motor torque +/- 10 % for 60 s |
| رمپ های شتاب و کاهش سرعت (Acceleration and deceleration ramps) | Automatic based on the load
Linear adjustable separately from 0.01 to 3200 s |
| جبران لغزش موتور (Motor slip compensation) | Not available in voltage/frequency ratio motor control
Automatic whatever the load
Adjustable |
| فرکانس سوئیچینگ (Switching frequency) | 6-16 kHz adjustable
8-16 kHz with derating factor |
| فرکانس سوئیچینگ اسمی (Nominal switching frequency) | 8 kHz |
| ترمز تا سکون (Braking to standstill) | By DC injection |
| فرکانس شبکه (Network frequency) | 47.5-63 Hz |
| جریان اتصال کوتاه خط (Prospective line Isc) | 22 kA |

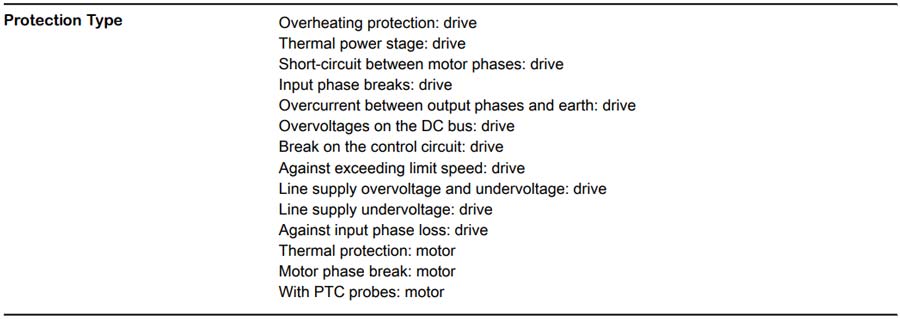

| نوع حفاظت (Protection type) | Overheating protection: drive
Thermal power stage: drive
Short-circuit between motor phases: drive
Input phase breaks: drive
Overcurrent between output phases and earth: drive
Overvoltages on the DC bus: drive
Break on the control circuit: drive
Against exceeding limit speed: drive
Line supply overvoltage and undervoltage: drive
Line supply undervoltage: drive
Against input phase loss: drive
Thermal protection: motor
Motor phase break: motor
With PTC probes: motor |
| عرض (Width) | 320 mm |
| ارتفاع (Height) | 630 mm |
| عمق (Depth) | 290 mm |
مشخصات زیست محیطی درایو 75 کیلووات آلتیوار 212 اشنایدر |
| درجه آلودگی (Pollution degree) | 3 conforming to IEC 61800-5-1 |
| درجه حفاظت IP (IP degree of protection) | IP20 on upper part without blanking plate on cover conforming to IEC 61800-5-1
IP20 on upper part without blanking plate on cover conforming to IEC 60529
IP21 conforming to IEC 61800-5-1
IP21 conforming to IEC 60529
IP41 on upper part conforming to IEC 61800-5-1
IP41 on upper part conforming to IEC 60529 |
| مقاومت در برابر لرزش (Vibration resistance) | 1.5 mm (f= 3…13 Hz) conforming to IEC 60068-2-6
1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-8 |
| مقاومت در برابر ضربه (Shock resistance) | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| ویژگی محیطی (Environmental characteristic) | Classes 3C1 conforming to IEC 60721-3-3
Classes 3S2 conforming to IEC 60721-3-3 |
| سطح سر و صدا (Noise level) | 63.7 dB conforming to 86/188/EEC |
| ارتفاع عملیاتی (Operating altitude) | 1000-3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m
<= 1000 m without derating |
| رطوبت نسبی (Relative humidity) | 5…95 % without condensation conforming to IEC 60068-2-3
5…95 % without dripping water conforming to IEC 60068-2-3 |
| دمای هوای محیط برای عملیات (Ambient air temperature for operation) | -10…40 °C (without derating)
40…50 °C (with derating factor) |
| موقعیت عملیاتی (Operating position) | Vertical +/- 10 degree |
| گواهینامه های محصول (Product certifications) | UL
NOM 117
C-Tick
CSA |
| علامت گذاری (Marking) | CE |
| استانداردها (Standards) | IEC 61800-3 category C3
IEC 61800-3 category C2
IEC 61800-3 environments 1 category C3
IEC 61800-3
UL Type 1
IEC 61800-3 environments 2 category C3
IEC 61800-3 category C2
IEC 61800-3 environments 2 category C2
IEC 61800-3 environments 1 category C1
IEC 61800-5-1
IEC 61800-3 environments 2 category C1
IEC 61800-3 environments 1 category C2
EN 61800-3 category C3
IEC 61800-3 environments 2 category C2
IEC 61800-3 environments 1 category C3
IEC 61800-3 environments 2 category C3
IEC 61800-5-1
IEC 61800-3
IEC 61800-3 environments 1 category C1
IEC 61800-3 environments 1 category C2
EN 55011 class A group 1
IEC 61800-3 environments 2 category C1 |
| سبک مونتاژ (Assembly style) | With heat sink |
| سازگاری الکترومغناطیسی (Electromagnetic compatibility) | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| حلقه تنظیم (Regulation loop) | Adjustable PI regulator |
| دمای هوای محیط نگهداری (Ambient air temperature for storage) | -25…70 °C |
واحد های بسته بندی درایو 75 کیلووات آلتیوار 212 اشنایدر |
| نوع واحد بسته 1 (Unit Type of Package 1) | PCE |
| تعداد واحد در بسته 1 (Number of Units in Package 1) | 1 |
| بسته 1 ارتفاع (Package 1 Height) | 47 cm |
| بسته 1 عرض (Package 1 Width) | 50 cm |
| بسته 1 طول (Package 1 Length) | 77 cm |
| بسته 1 وزن (Package 1 Weight) | 43.5 kg |
