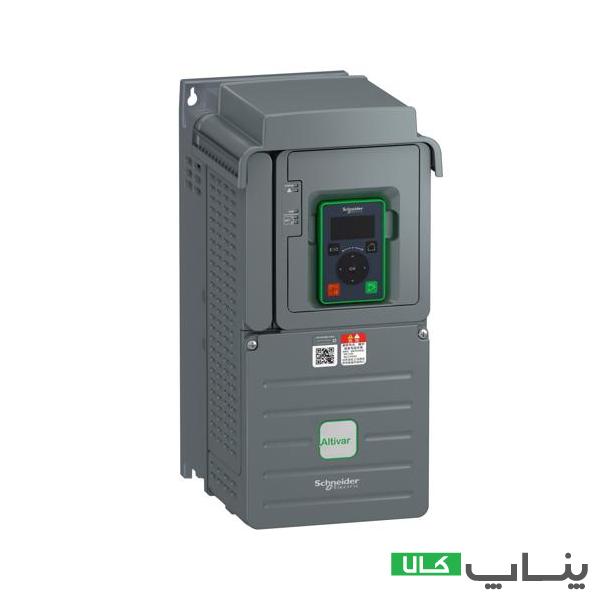

مشخصات اصلی درایو 15 کیلووات آلتیوار 610 اشنایدر |
خانواده محصول (Range of product) | Easy Altivar 610 |
نوع محصول یا جزء (Product or component type) | Variable speed drive |
کاربرد خاص محصول (Product specific application) | Fan, pump, compressor, conveyor |
نام کوتاه محصول (Device short name) | ATV610 |
گونه (Variant) | Standard version |
موارد استفاده (Product destination) | Asynchronous motors Synchronous motors |
mounting mode | Cabinet mount |
فیلتر EMC (EMC filter) | Integrated conforming to IEC 61800-3 category C3 with 50 m |
درجه حفاظت IP (IP degree of protection) | IP20 |
نوع خنک کننده (Type of cooling) | Forced convection |
فرکانس تغذیه (Supply frequency) | 50-60 Hz +/-5 % |
تعداد فازهای شبکه (Network number of phases) | 3 phases |
[ما] ولتاژ منبع تغذیه نامی (Rated supply voltage) | 380-460 V - 15-10 % |
توان موتور (کیلووات) (Motor power kW) | 15 kW for normal duty 11 kW for heavy duty |
توان موتور (اسب بخار) (Motor power hp) | 20 hp for normal duty 15 hp for heavy duty |
جریان خط (Line current) | 29.4 A at 380 V (normal duty) 26.0 A at 460 V (normal duty) 23 A at 380 V (heavy duty) 20.8 A at 460 V (heavy duty) |
جریان اتصال کوتاه خط (Prospective line Isc) | 22 kA |
توان ظاهری (Apparent power) | 20.7 kVA at 460 V (normal duty) 16.6 kVA at 460 V (heavy duty) |
جریان خروجی پیوسته (Continuous output current) | 31.7 A at 4 kHz for normal duty 23.5 A at 4 kHz for heavy duty |
حداکثر جریان گذرا (Maximum transient current) | 34.9 A during 60 s (normal duty) 35.3 A during 60 s (heavy duty) |
مشخصات کنترل موتور ناهمزمان (Asynchronous motor control profile) | Variable torque standard Optimized torque mode Constant torque standard |
فرکانس خروجی (Output frequency) | 0.1…500 Hz |
فرکانس سوئیچینگ اسمی (Nominal switching frequency) | 4 kHz |
فرکانس سوئیچینگ (Switching frequency) | 2-12 kHz adjustable |
تعداد سرعت های از پیش تعیین شده (Number of preset speeds) | 16 preset speeds |
پروتکل پورت ارتباطی (Communication port protocol) | Modbus serial |
کارت توسعه (Option card) | Slot A: communication card, Profibus DP V1 Slot A: digital or analog I/O extension card Slot A: relay output card |
مشخصات تکمیلی درایو 15 کیلووات آلتیوار 610 اشنایدر |
ولتاژ خروجی (Output voltage) | <= power supply voltage |
جبران لغزش موتور (Motor slip compensation) | Can be suppressed Not available in permanent magnet motor law Automatic whatever the load Adjustable |
رمپ های شتاب و کاهش سرعت (Acceleration and deceleration ramps) | S, U or customized Linear adjustable separately from 0.01 to 9000 s |
ترمز تا سکون (Braking to standstill) | By DC injection |
نوع حفاظت (Protection type) | Thermal protection: motor Motor phase break: motor Thermal protection: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive |
وضوح فرکانس (Frequency resolution) | Display unit: 0.1 Hz Analog input: 0.012/50 Hz |
اتصال برق (Electrical connection) | Control, screw terminal: 0.5-1.5 mm² Line side, screw terminal: 6-16 mm² Motor, screw terminal: 6-16 mm² |
نوع رابط (Connector type) | 1 RJ45 (on the remote graphic terminal) for Modbus serial |
رابط فیزیکی (Physical interface) | 2-wire RS 485 for Modbus serial |
قاب انتقال (Transmission frame) | RTU for Modbus serial |
نرخ انتقال (Transmission rate) | 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
نوع پلاریزاسیون (Type of polarization) | No impedance for Modbus serial |
تعداد آدرس ها (Number of addresses) | 1…247 for Modbus serial |
روش دسترسی (Method of access) | Slave |
تغذیه (Supply) | External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection |
سیگنال دهی محلی (Local signalling) | 2 LEDs for local diagnostic 1 LED (yellow) for embedded communication status 2 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage |
عرض (Width) | 171 mm |
ارتفاع (Height) | 360 mm 423 mm with EMC plate |
عمق (Depth) | 233 mm |
وزن خالص (Net weight) | 7.730 kg |
Analogue input number | 3 |
نوع ورودی آنالوگ (Analogue input type) | AI1, AI2, AI3 software-configurable voltage: 0-10 V DC, impedance: 30 kOhm, resolution 12 bits AI1, AI2, AI3 software-configurable current: 0-20 mA, impedance: 250 Ohm, resolution 12 bits AI2, AI3 software-configurable temperature probe or water level sensor |
تعداد ورودی دیجیتال (Discrete input number) | 6 |
نوع ورودی دیجیتال (Discrete input type) | DI1-DI6 programmable as logic input, 24 V DC (<= 30 V), impedance: 3.5 kOhm DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V) |
سازگاری ورودی (Input compatibility) | DI1-DI6: logic input level 1 PLC conforming to IEC 61131-2 DI5, DI6: pulse input level 1 PLC conforming to IEC 65A-68 |
منطق ورودی دیجیتال (Discrete input logic) | Positive logic (source): DI1-DI6 configurable logic input, 11 V (state 1) Negative logic (sink): DI1-DI6 configurable logic input, > 16 V (state 0), < 10 V (state 1) Positive logic (source): DI5, DI6 configurable pulse input, 2.5 V (state 1) |
Analogue output number | 2 |
نوع خروجی آنالوگ (Analogue output type) | Software-configurable current AQ1, AQ2: 0-20 mA, resolution 10 bits Software-configurable voltage AQ1, AQ2: 0-10 V DC impedance 470 Ohm, resolution 10 bits |
مدت زمان نمونه برداری (Sampling duration) | 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input 2 ms +/- 0.5 ms (DI1-DI6)configurable - discrete input 5 ms +/- 1 ms (DI5, DI6)configurable - pulse input 10 ms +/- 1 ms (AQ1, AQ2) - analog output |
دقت (Accuracy) | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output |
خطای خطی (Linearity error) | AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input AQ1, AQ2: +/- 0.2 % for analog output |
تعداد خروجی رله (Relay output number) | 3 |
نوع خروجی رله (Relay output type) | Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles |
زمان تازه کردن (Refresh time) | Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
حداقل جریان سوئیچینگ (Minimum switching current) | Relay output R1, R2, R3: 5 mA at 24 V DC |
حداکثر جریان سوئیچینگ (Maximum switching current) | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
ایزولاسیون (Isolation) | Between power and control terminals |
مقاومت عایق (Insulation resistance) | > 1 MOhm 500 V DC for 1 minute to earth |
مشخصات زیست محیطی درایو 15 کیلووات آلتیوار 610 اشنایدر |
سطح سر و صدا (Noise level) | 65 dB conforming to 86/188/EEC |
اتلاف برق در وات (Power dissipation in W) | 408 W(forced convection) at 380 V, switching frequency 4 kHz 62 W(natural convection) at 380 V, switching frequency 4 kHz |
موقعیت عملیاتی (Operating position) | Vertical +/- 10 degree |
سازگاری الکترومغناطیسی (Electromagnetic compatibility) | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
درجه آلودگی (Pollution degree) | 2 conforming to IEC 61800-5-1 |
مقاومت در برابر لرزش (Vibration resistance) | 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 |
مقاومت در برابر ضربه (Shock resistance) | 15 gn for 11 ms conforming to IEC 60068-2-27 |
رطوبت نسبی (Relative humidity) | 5…95 % without condensation conforming to IEC 60068-2-3 |
دمای هوای محیط برای عملیات (Ambient air temperature for operation) | -15…45 °C (without derating) 45…60 °C (with derating factor) |
ارتفاع عملیاتی (Operating altitude) | <= 1000 m without derating 1000-4800 m with current derating 1 % per 100 m |
ویژگی محیطی (Environmental characteristic) | Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3 Dust pollution resistance class 3S3 conforming to IEC 60721-3-3 |
استانداردها (Standards) | IEC 61800-3 Environment 2 category C3 IEC 61800-3 IEC 61800-5-1 IEC 60721-3 |
علامت گذاری (Marking) | CE |
واحد های بسته بندی درایو 15 کیلووات آلتیوار 610 اشنایدر |
نوع واحد بسته 1 (Unit Type of Package 1) | PCE |
تعداد واحد در بسته 1 (Number of Units in Package 1) | 1 |
بسته 1 ارتفاع (Package 1 Height) | 21.5 cm |
بسته 1 عرض (Package 1 Width) | 34.5 cm |
بسته 1 طول (Package 1 Length) | 58.0 cm |
بسته 1 وزن (Package 1 Weight) | 10.12 kg |
نوع واحد بسته 2 (Unit Type of Package 2) | S06 |
تعداد واحد در بسته 2 (Number of Units in Package 2) | 3 |
بسته 2 ارتفاع (Package 2 Height) | 75.0 cm |
بسته 2 عرض (Package 2 Width) | 80.0 cm |
بسته 2 طول (Package 2 Length) | 60.0 cm |
بسته 2 وزن (Package 2 Weight) | 38.36 kg |
