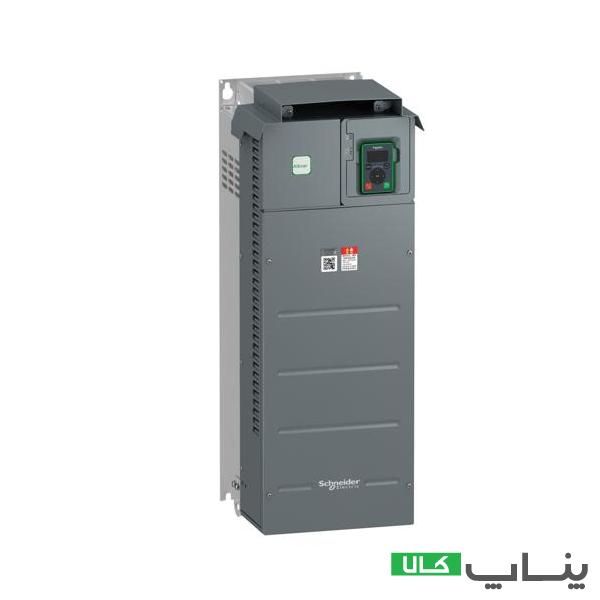

مشخصات اصلی درایو 55 کیلووات آلتیوار 610 اشنایدر |
| خانواده محصول (Range of product) | Easy Altivar 610 |
| نوع محصول یا جزء (Product or component type) | Variable speed drive |
| کاربرد خاص محصول (Product specific application) | Fan, pump, compressor, conveyor |
| نام کوتاه محصول (Device short name) | ATV610 |
| گونه (Variant) | Standard version |
| موارد استفاده (Product destination) | Asynchronous motors
Synchronous motors |
| mounting mode | Cabinet mount |
| فیلتر EMC (EMC filter) | Integrated conforming to IEC 61800-3 category C3 with 50 m |
| درجه حفاظت IP (IP degree of protection) | IP20 |
| نوع خنک کننده (Type of cooling) | Forced convection |
| فرکانس تغذیه (Supply frequency) | 50-60 Hz +/-5 % |
| تعداد فازهای شبکه (Network number of phases) | 3 phases |
| [ما] ولتاژ منبع تغذیه نامی (Rated supply voltage) | 380-460 V - 15-10 % |
| توان موتور (کیلووات) (Motor power kW) | 55 kW for normal duty
45 kW for heavy duty |
| توان موتور (اسب بخار) (Motor power hp) | 75 hp for normal duty
60 hp for heavy duty |
| جریان خط (Line current) | 111.5 A at 380 V (normal duty)
99.7 A at 460 V (normal duty)
95.9 A at 380 V (heavy duty)
84.0 A at 460 V (heavy duty) |
| جریان اتصال کوتاه خط (Prospective line Isc) | 22 kA |
| توان ظاهری (Apparent power) | 79.5 kVA at 460 V (normal duty)
66.9 kVA at 460 V (heavy duty) |
| جریان خروجی پیوسته (Continuous output current) | 88 A at 2.5 kHz for heavy duty
120 A at 2.5 kHz for normal duty |
| حداکثر جریان گذرا (Maximum transient current) | 132 A during 60 s (heavy duty)
132 A during 60 s (normal duty) |
| مشخصات کنترل موتور ناهمزمان (Asynchronous motor control profile) | Optimized torque mode
Constant torque standard
Variable torque standard |
| فرکانس خروجی (Output frequency) | 0.1…500 Hz |
| فرکانس سوئیچینگ اسمی (Nominal switching frequency) | 2.5 kHz |
| فرکانس سوئیچینگ (Switching frequency) | 1-8 kHz adjustable |
| تعداد سرعت های از پیش تعیین شده (Number of preset speeds) | 16 preset speeds |
| پروتکل پورت ارتباطی (Communication port protocol) | Modbus serial |
| کارت توسعه (Option card) | Slot A: communication card, Profibus DP V1
Slot A: digital or analog I/O extension card
Slot A: relay output card |
مشخصات تکمیلی درایو 55 کیلووات آلتیوار 610 اشنایدر |
| ولتاژ خروجی (Output voltage) | <= power supply voltage |
| جبران لغزش موتور (Motor slip compensation) | Automatic whatever the load
Adjustable
Not available in permanent magnet motor law
Can be suppressed |
| رمپ های شتاب و کاهش سرعت (Acceleration and deceleration ramps) | S, U or customized
Linear adjustable separately from 0.01 to 9000 s |
| ترمز تا سکون (Braking to standstill) | By DC injection |
| نوع حفاظت (Protection type) | Thermal protection: motor
Motor phase break: motor
Thermal protection: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive |
| وضوح فرکانس (Frequency resolution) | Display unit: 0.1 Hz
Analog input: 0.012/50 Hz |
| اتصال برق (Electrical connection) | Control, screw terminal: 0.5-1.5 mm²
Line side, screw terminal: 70-120 mm²
Motor, screw terminal: 70-120 mm² |
| نوع رابط (Connector type) | 1 RJ45 (on the remote graphic terminal) for Modbus serial |
| رابط فیزیکی (Physical interface) | 2-wire RS 485 for Modbus serial |
| قاب انتقال (Transmission frame) | RTU for Modbus serial |
| نرخ انتقال (Transmission rate) | 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
| نوع پلاریزاسیون (Type of polarization) | No impedance for Modbus serial |
| تعداد آدرس ها (Number of addresses) | 1…247 for Modbus serial |
| روش دسترسی (Method of access) | Slave |
| تغذیه (Supply) | External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection |
| سیگنال دهی محلی (Local signalling) | 2 LEDs for local diagnostic
1 LED (yellow) for embedded communication status
2 LEDs (dual colour) for communication module status
1 LED (red) for presence of voltage |
| عرض (Width) | 290 mm |
| ارتفاع (Height) | 762 mm
922 mm with EMC plate |
| عمق (Depth) | 323 mm |
| وزن خالص (Net weight) | 53 kg |
| Analogue input number | 3 |
| نوع ورودی آنالوگ (Analogue input type) | AI1, AI2, AI3 software-configurable voltage: 0-10 V DC, impedance: 30 kOhm, resolution 12 bits
AI1, AI2, AI3 software-configurable current: 0-20 mA, impedance: 250 Ohm, resolution 12 bits
AI2, AI3 software-configurable temperature probe or water level sensor |
| تعداد ورودی دیجیتال (Discrete input number) | 6 |
| نوع ورودی دیجیتال (Discrete input type) | DI1-DI6 programmable as logic input, 24 V DC (<= 30 V), impedance: 3.5 kOhm
DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V) |
| سازگاری ورودی (Input compatibility) | DI1-DI6: logic input level 1 PLC conforming to IEC 61131-2
DI5, DI6: pulse input level 1 PLC conforming to IEC 65A-68 |
| منطق ورودی دیجیتال (Discrete input logic) | Positive logic (source): DI1-DI6 configurable logic input, 11 V (state 1)
Negative logic (sink): DI1-DI6 configurable logic input, > 16 V (state 0), < 10 V (state 1)
Positive logic (source): DI5, DI6 configurable pulse input, 2.5 V (state 1) |
| Analogue output number | 2 |
| نوع خروجی آنالوگ (Analogue output type) | Software-configurable current AQ1, AQ2: 0-20 mA, resolution 10 bits
Software-configurable voltage AQ1, AQ2: 0-10 V DC impedance 470 Ohm, resolution 10 bits |
| مدت زمان نمونه برداری (Sampling duration) | 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input
2 ms +/- 0.5 ms (DI1-DI6)configurable - discrete input
5 ms +/- 1 ms (DI5, DI6)configurable - pulse input
10 ms +/- 1 ms (AQ1, AQ2) - analog output |
| دقت (Accuracy) | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
+/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output |
| خطای خطی (Linearity error) | AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
AQ1, AQ2: +/- 0.2 % for analog output |
| تعداد خروجی رله (Relay output number) | 3 |
| نوع خروجی رله (Relay output type) | Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles |
| زمان تازه کردن (Refresh time) | Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
| حداقل جریان سوئیچینگ (Minimum switching current) | Relay output R1, R2, R3: 5 mA at 24 V DC |
| حداکثر جریان سوئیچینگ (Maximum switching current) | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| ایزولاسیون (Isolation) | Between power and control terminals |
| مقاومت عایق (Insulation resistance) | > 1 MOhm 500 V DC for 1 minute to earth |
مشخصات زیست محیطی درایو 55 کیلووات آلتیوار 610 اشنایدر |
| سطح سر و صدا (Noise level) | 78 dB conforming to 86/188/EEC |
| اتلاف برق در وات (Power dissipation in W) | 969 W(forced convection) at 380 V, switching frequency 2.5 kHz
131 W(natural convection) at 380 V, switching frequency 2.5 kHz |
| حجم هوای خنک کننده (Volume of cooling air) | 295 m3/h |
| موقعیت عملیاتی (Operating position) | Vertical +/- 10 degree |
| سازگاری الکترومغناطیسی (Electromagnetic compatibility) | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| درجه آلودگی (Pollution degree) | 2 conforming to IEC 61800-5-1 |
| مقاومت در برابر لرزش (Vibration resistance) | 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 |
| مقاومت در برابر ضربه (Shock resistance) | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| رطوبت نسبی (Relative humidity) | 5…95 % without condensation conforming to IEC 60068-2-3 |
| دمای هوای محیط برای عملیات (Ambient air temperature for operation) | -15…45 °C (without derating)
45…60 °C (with derating factor) |
| دمای هوای محیط نگهداری (Ambient air temperature for storage) | -40…70 °C |
| ارتفاع عملیاتی (Operating altitude) | <= 1000 m without derating
1000-4800 m with current derating 1 % per 100 m |
| ویژگی محیطی (Environmental characteristic) | Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3
Dust pollution resistance class 3S3 conforming to IEC 60721-3-3 |
| استانداردها (Standards) | IEC 61800-3
Environment 2 category C3 IEC 61800-3
IEC 61800-5-1
IEC 60721-3 |
| علامت گذاری (Marking) | CE |
واحد های بسته بندی درایو 55 کیلووات آلتیوار 610 اشنایدر |
| نوع واحد بسته 1 (Unit Type of Package 1) | PCE |
| تعداد واحد در بسته 1 (Number of Units in Package 1) | 1 |
| بسته 1 ارتفاع (Package 1 Height) | 47.000 cm |
| بسته 1 عرض (Package 1 Width) | 59.000 cm |
| بسته 1 طول (Package 1 Length) | 87.000 cm |
| بسته 1 وزن (Package 1 Weight) | 70.500 kg |
